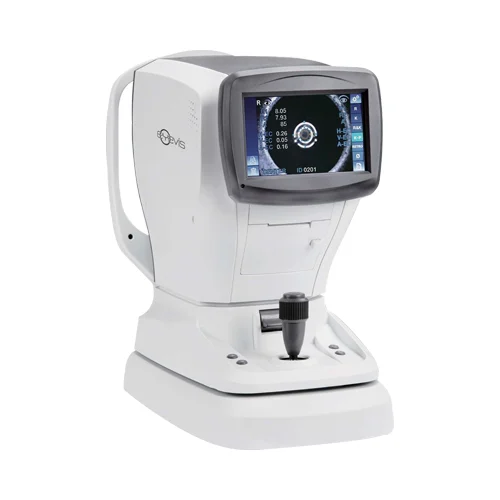

KR-9900 Auto Refractometer Keratometer with 3D Autofocus
₹200,000.00
The Auto Refractometer Keratometer KR-9900 combines precise refraction and advanced keratometry in one intelligent system. With 3D autofocus, peripheral corneal measurement, and high-resolution imaging, it delivers comprehensive and reliable ocular diagnostics.
In Stock
Description
The KR-9900 Auto Refractometer Keratometer is an advanced diagnostic platform integrating refraction and corneal curvature measurement into a single high-performance unit. Utilizing 3D autofocus technology, the system automatically focuses and measures both eyes quickly and accurately.
Its mire ring double-ring measurement system enables synchronous focusing and data capture, increasing measurable points and significantly improving keratometry accuracy. The rotation prism ensures evenly distributed light, producing high-quality measurement rings for consistent results.
The KR-9900 supports peripheral keratometry measurement, analyzing corneal steepness within a 3 mm zone around the corneal center for a more complete understanding of corneal shape. A powerful SLD + CCD imaging system ensures reliable measurement even for cataract patients.
With intelligent eye tracking, synchronous PD measurement, RETRO mode, and ergonomic design, the KR-9900 is ideal for busy ophthalmic clinics and optometry practices requiring fast, precise, and comprehensive diagnostics.
Key Features
- Integrated auto refractometer & keratometer
- 3D autofocus for rapid and accurate measurement
- Double-ring mire system for enhanced keratometry accuracy
- Rotation prism for uniform ring illumination
- Peripheral corneal curvature measurement
- Automatic eye tracing & focusing
- Synchronous PD and refraction recording
- RETRO mode for anterior segment evaluation
- 7-inch 90° tiltable touch screen
- Motorized chin & head rest
- Built-in high-speed thermal printer
Technical Specifications
| Specification | Details |
| Refractive Measurement | |
| Vertex Distance (VD) | 0.0 / 12.0 / 13.75 / 15.0 mm |
| Sphere | −25.00 ~ +22.00 D (0.12 / 0.25 D step) (VD = 12mm) |
| Cylinder | 0.00 ~ ±10.00 D (0.12 / 0.25 D step) |
| Axis | 0° ~ 180° (1° step) |
| PD Range | 10 ~ 85 mm |
| Minimum Pupil Diameter | φ2.0 mm |
| Target Fixation | Auto fog system |
| Keratometry Measurement | |
| Radius of Curvature | 5 ~ 10 mm (0.01 mm step) |
| Corneal Refraction | 33.75 ~ 67.50 D (0.12 / 0.25 D step) |
| Corneal Astigmatism | 0.00 ~ ±15.00 D (0.12 / 0.25 D step) |
| Axis | 0° ~ 180° (1° step) |
| Corneal Diameter | 2.0 ~ 12.0 mm |
| General Specifications | |
| Display | 7-inch color LCD |
| Printer | Built-in thermal printer |
| Power Saving | OFF / 5 / 15 minutes |
| Data Export | RS232 / Bluetooth |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 50 W |
| Dimensions | 262 (W) × 487 (D) × 487 (H) mm |
| Weight | 17.2 kg |
