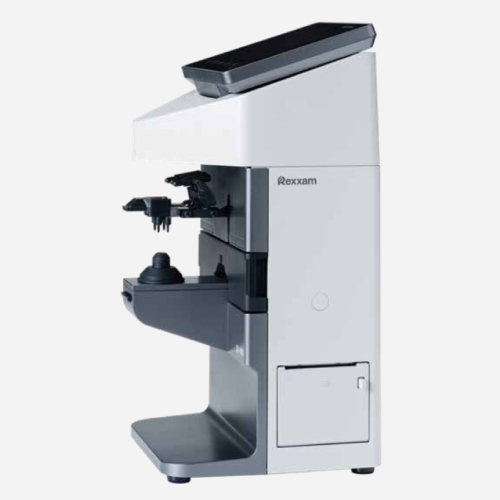

DL-1000 Advanced Digital Lensmeter with UV & PD Measurement
Original price was: ₹140,000.00.₹110,000.00Current price is: ₹110,000.00.
The DL-1000 Digital Lensmeter is the top model in Rexxam’s DL series, featuring UV transmittance measurement, pupillary distance measurement, and a built-in printer. Designed with a compact ergonomic body and green LED measurement technology, it delivers precise, fast, and reliable lens analysis.
In Stock
Description
The DL-1000 Digital Lensmeter is a premium, feature-rich solution engineered for optical practices that demand maximum accuracy, efficiency, and advanced diagnostic capability. Combining a compact and stylish design with an intuitive interface, it complements modern clinics while enhancing workflow productivity.
Equipped with a 5.7-inch flat color LCD monitor, the DL-1000 offers excellent visibility and a 60-degree tilt screen, allowing comfortable operation whether seated or standing. The green LED measurement beam (e-line) ensures highly accurate measurements across lenses with varying refractive indices—without the need for ABBE value compensation.
Exclusive to the DL-1000 are UV transmittance measurement and pupillary distance (PD) measurement, enabled by Rexxam’s innovative dual nose pad design, making PD measurement quick and reliable. The device also includes an automatic progressive lens detection and alignment guidance system, ensuring fast and accurate measurement of progressive lenses.
With capacitive touch buttons, secure lens fixation, built-in thermal printer, and seamless connectivity with Rexxam’s DR-900 Digital Refractor, the DL-1000 delivers a complete and efficient lens measurement solution.
Key Features
- Compact, ergonomic & stylish design
- 5.7-inch flat color LCD monitor
- 60° tilt screen for flexible operation
- Green LED measurement beam (e-line)
- Automatic progressive lens detection & guidance
- UV transmittance measurement (DL-1000 only)
- Pupillary distance measurement (DL-1000 only)
- Built-in thermal printer
- Capacitive touch sensor buttons
- High-precision lens holder & marking cartridges
- Data export to Rexxam DR-900
- Automatic power-saving mode
Technical Specifications
| Specification | Details |
| Measurement Range | |
| Sphere | −25.00D ~ +25.00D (0.01 / 0.12 / 0.25 step) |
| Cylinder | 0.00D ~ ±10.00D (0.01 / 0.12 / 0.25 step) |
| Axis | 0° ~ 180° (1° step) |
| Addition | 0.00D ~ +10.00D (0.01 / 0.12 / 0.25 step) |
| Prism | 0Δ ~ 10Δ (0.01 / 0.12 / 0.25 step) |
| Lens & Measurement | |
| Lens Diameter | Ø20 ~ 100 mm (in case of contact lens, more than Ø5 mm) |
| Lens Types | Single vision, multifocal, progressive |
| Measurement Wavelength | 525 nm |
| UV Transmittance | 0 ~ 100% (5% step) |
| UV Wavelength | 375 nm (UV-A) |
| PD Measurement | 45 ~ 85 mm (0.5 mm step) |
| General | |
| Monitor | 5.7-inch color LCD |
| Printer | Thermal line printer |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 40 VA |
| Power Saving | OFF / 3 / 5 / 10 min |
| Data Output | RS-232C interface |
| Weight | Approx. 4.3 kg |
| Dimensions | 170(W) × 205(D) × 468(H) mm (400(H) mm – when the monitor is stored) |
